AP1000 – 82 FT Elevation Generator HP Door

Application: Vogtle Units 3 & 4

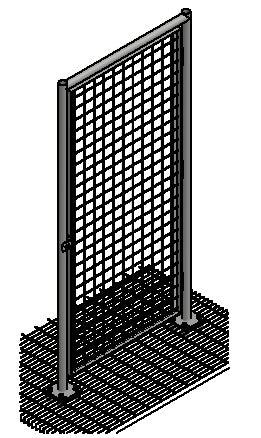

The 82 FT Elevation Generator HP Door is a stainless steel Health Physics Engineered Barrier designed for secure, temporary access control in radiologically sensitive areas at the 82-foot elevation of the AP1000 turbine building.

Key Features

• Non-Penetrating Mounting: Secures to existing floor grating using threaded locking tabs and Grade 8 hardware — no welding required

• Removable Design: Equipped with lift-off style hinges for quick installation or removal as access needs change

• Enhanced Security: Includes a pad-lockable tab for physical access control

• High-Visibility Barrier: Integrated mesh panel allows visibility while maintaining containment

Construction & Materials

• Material: All stainless steel for corrosion resistance and decontamination ease

• Mesh Panel: 3" x 3" grid pattern using 3/16" bar diameter

• Durability: Built for repeated use in high-traffic radiological work zones

This door delivers both structural strength and operational flexibility, enabling improved human performance and radiation safety at critical access points within the AP1000 environment.
