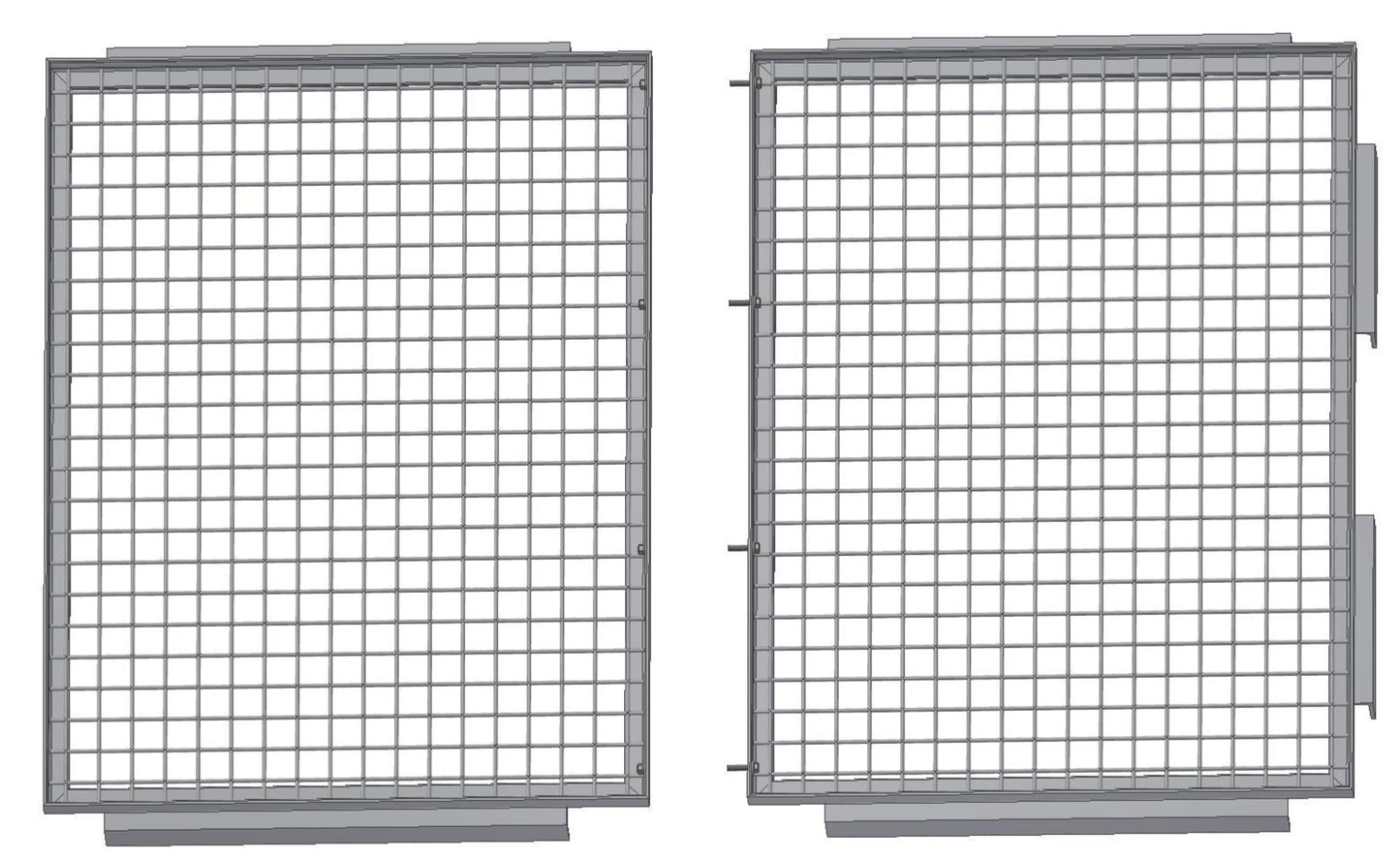

AP1000 PXS Weir Well Cover

Application: Vogtle Units 3 & 4

The PXS Weir Well Cover is a Health Physics Engineered Barrier specifically designed for the AP1000 reactor platform, providing secure, lockable access restriction to the PXS Weir Well area.

Key Features

• Access Control: Engineered to limit and control personnel entry into the PXS Weir Well for safety and compliance

• Visual Deterrent & Physical Barrier: Reinforces radiation safety boundaries while deterring unauthorized access

• Lightweight Construction: Built from corrosion-resistant aluminum for ease of handling and installation

Specifications

• Material: Aluminum

• Mesh Size: 2" x 2" grid made from 1/4" diameter bar

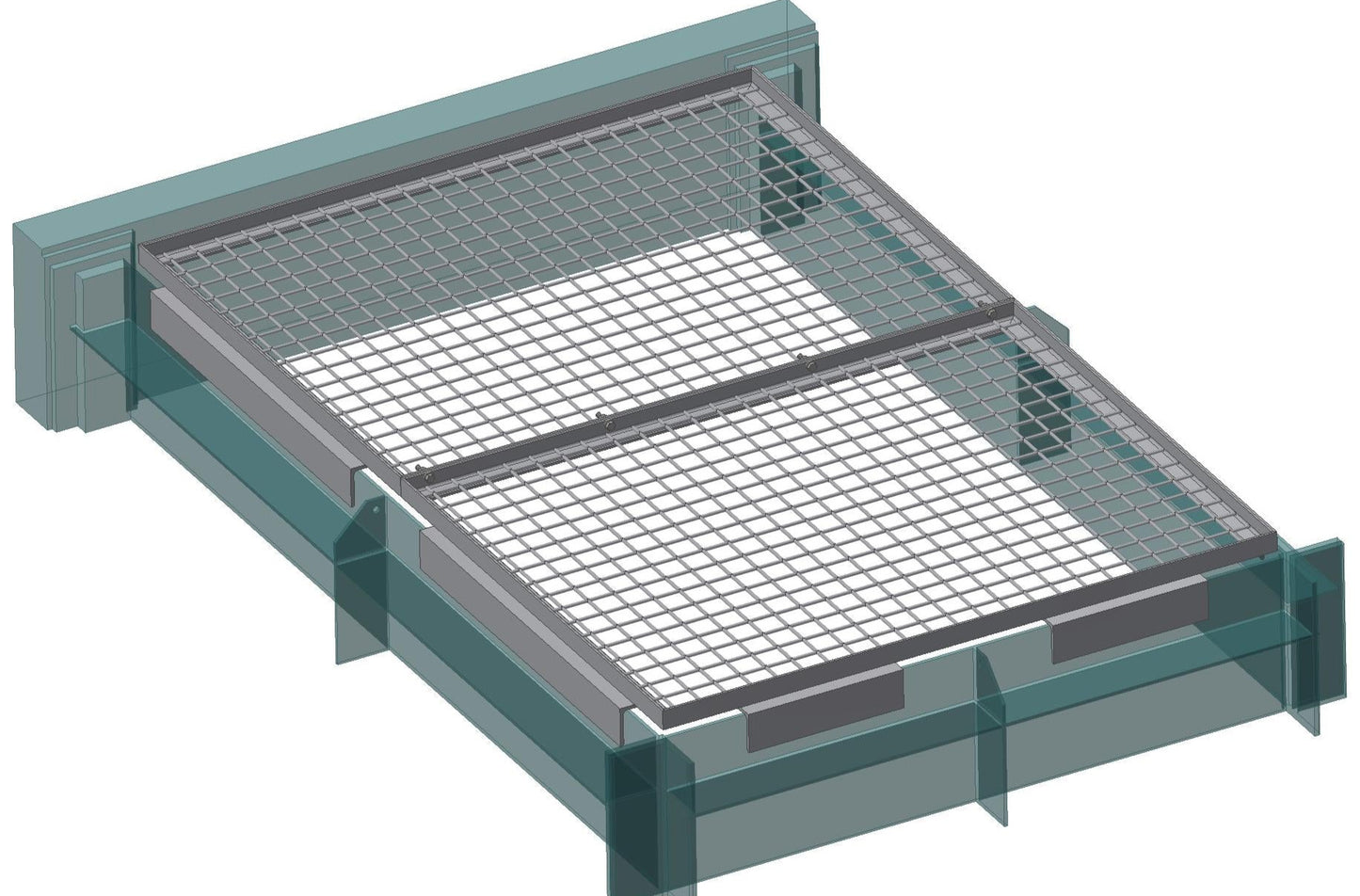

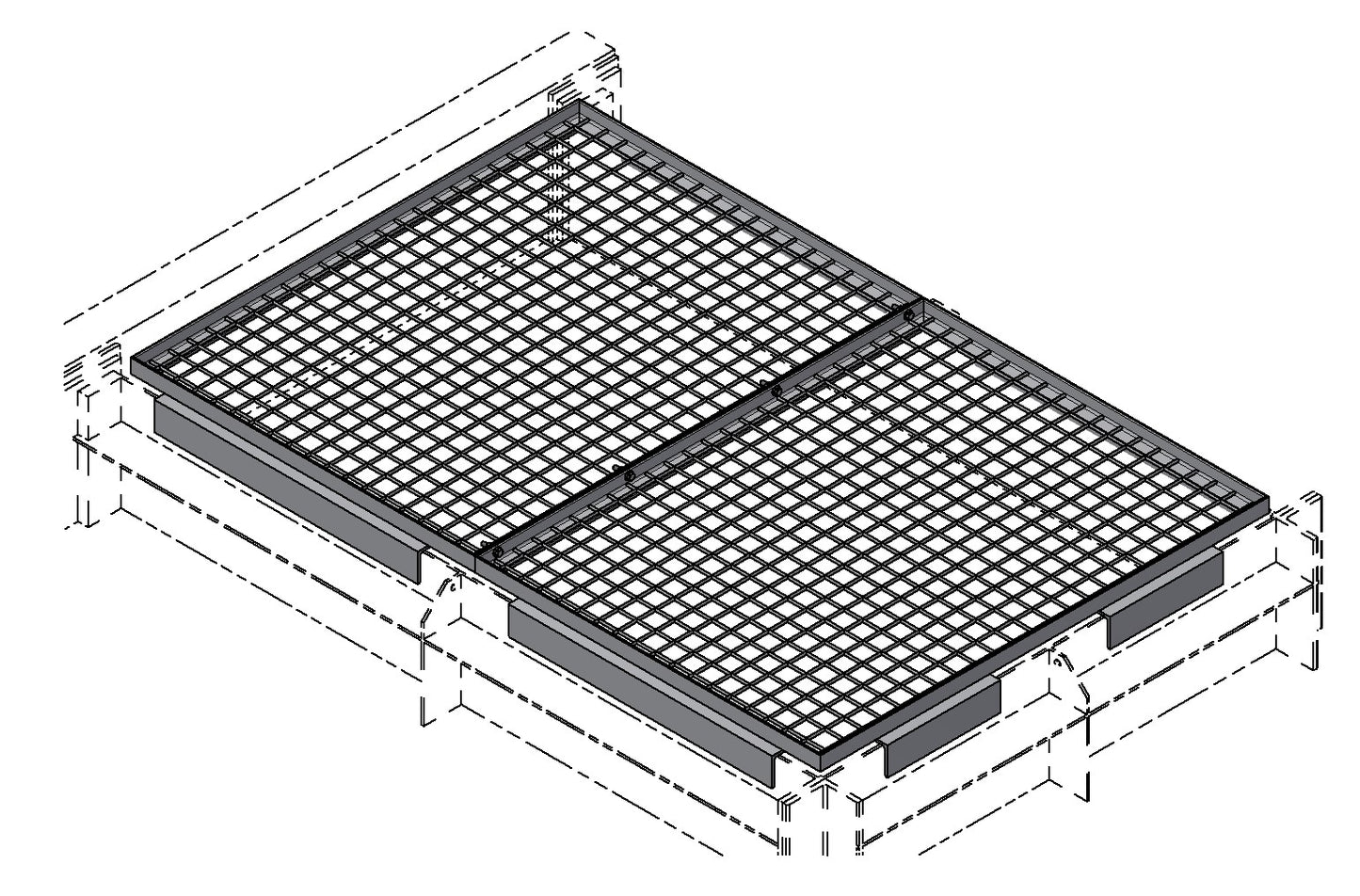

• Design: Drop-in fit compatible with existing structural supports for Vogtle Units 3 & 4

This cover helps maintain ALARA principles by minimizing unnecessary entry while ensuring robust physical protection.
