CRD Transfer Cart

Overview

The HTS CRD Transfer Cart is specifically designed to support under-vessel Control Rod Drive (CRD) maintenance operations in Boiling Water Reactor (BWR) nuclear power plants. It provides a safe and efficient means of transporting, staging, and supporting CRD assemblies during removal, installation, inspection, and refurbishment activities.

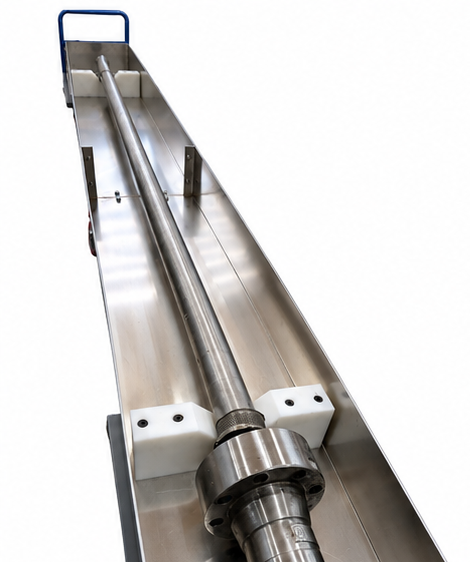

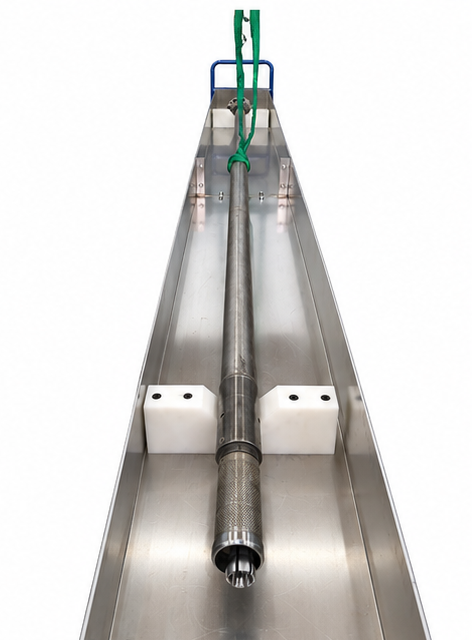

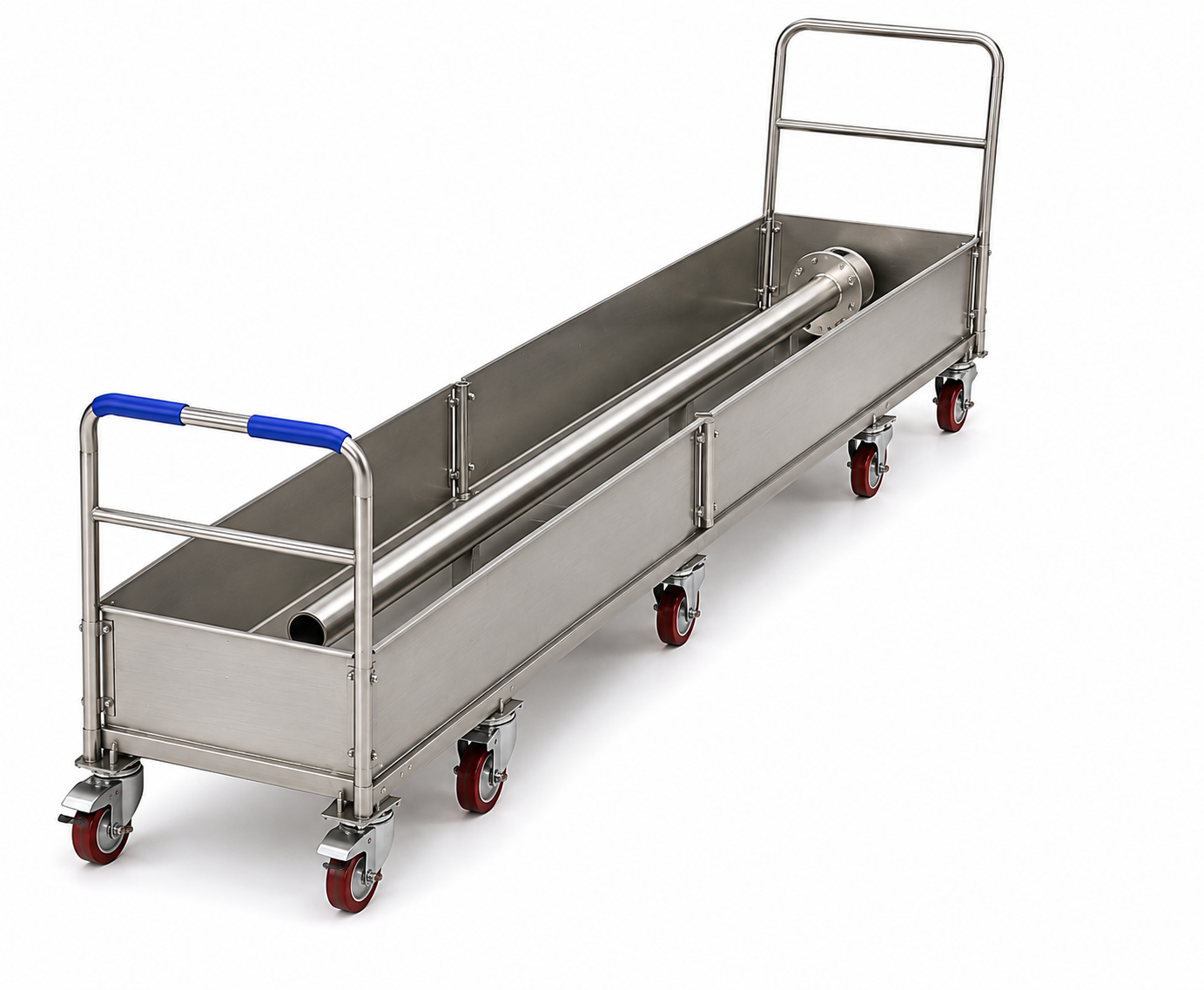

Constructed from lightweight aluminum, the cart provides excellent maneuverability.  Delrin support blocks securely cradle the CRD, protecting critical machined surfaces from damage while minimizing the potential for contamination transfer. Dual push handles and heavy-duty swivel casters allow the cart to be easily maneuvered within confined under-vessel work areas and maintenance facilities.

Key Features

• Designed specifically for under-vessel CRD maintenance in BWR nuclear power plants.
• Lightweight aluminum channel construction for easy handling and maneuverability.
• Precision-machined Delrin support blocks securely cradle the CRD while preventing metal-to-metal contact.
• Dual ergonomic push handles allow operation from either end of the cart.
• Heavy-duty swivel casters provide smooth movement through maintenance and staging areas.
• Open-channel design provides unrestricted access for loading, unloading, inspection, and maintenance.
• Provides a dedicated transport and staging platform for CRD assemblies.

Benefits

• Protects precision-machined CRD components during handling and transport.
• Eliminates metal-to-metal contact through the use of Delrin support blocks.
• Lightweight construction reduces operator effort while maintaining structural integrity.
• Improves efficiency during under-vessel CRD removal and installation activities.
• Provides a stable platform for transporting and staging CRD assemblies throughout maintenance operations.
• Supports contamination control practices through the use of cleanable materials and dedicated component support.

Construction & Compliance

• Lightweight aluminum channel construction provides an excellent balance of strength, durability, and maneuverability.
• Precision-machined Delrin support blocks protect finished CRD surfaces from scratches, dents, and wear.
• Smooth, cleanable materials support contamination control and simplify decontamination in radiological work environments.
• Designed for use in FME-controlled work areas.
