FRD Delivery Tool – Extended Collet

OVERVIEW

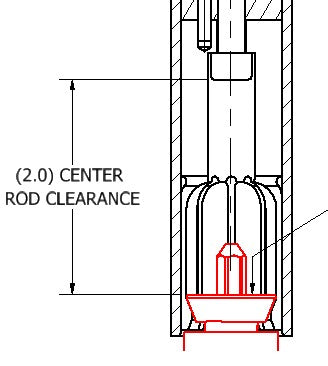

The HTS Extended Design Collet is engineered to allow for 2.0" of total center threaded rod clearance from the top of the tapered nut within the Fuel Repair Device (FRD) delivery system. This extended collet provides additional grip depth for longer rod applications, ensuring secure threading and alignment under load.

⚠️ Note: Must be paired with matching
1" Extended Bronze Sleeve — PN: 23C0142-R4 (sold separately or as part of an assembly)

KEY FEATURES

• 1" Extended Profile: Increases allowable center rod protrusion to 2" for deeper set installations

• Precision Machined Steel: Ensures tight thread alignment, repeatable engagement, and long-term durability

• Slotted Design: Expands to grip and lock threaded rod with uniform pressure

• System Compatible: Engineered for use with HTS FRD Delivery Tools and extended rod kits

• FME Safe: Fully retained inside sleeve assembly — no loose components
