ICI Puller – J-Lock Adapter Assembly

OVERVIEW

The HTS J-Lock Adapter Assembly is a specialized interface designed to align and secure Hi Tech Solutions J-Lock poles to the Westinghouse CE ICI Puller, as used at the Waterford Plant. This two-part system includes adjustable bolts to provide precise centering and vertical alignment, ensuring accurate load transfer and tool positioning during ICI extraction. The assembly is rated for a full 750 lb pulling force and integrates directly with the HTS J-Lock pole system.

KEY FEATURES

• Purpose-Built Interface: Designed to adapt the WEC CE ICI Puller to HTS J-Lock poles

• Adjustable Centering: Alignment bolts allow fine-tuning for vertical orientation and connection repeatability

• High Load Capacity: Rated for 750 lbs pulling force, matching HTS heavy-duty pole specifications

• Two-Part Construction: Includes adapter plate and clevis-style bail with secure mechanical fastening

• Field-Tested Design: Proven configuration for use at the Waterford Plant

RECOMMENDED RIGGING CONFIGURATION

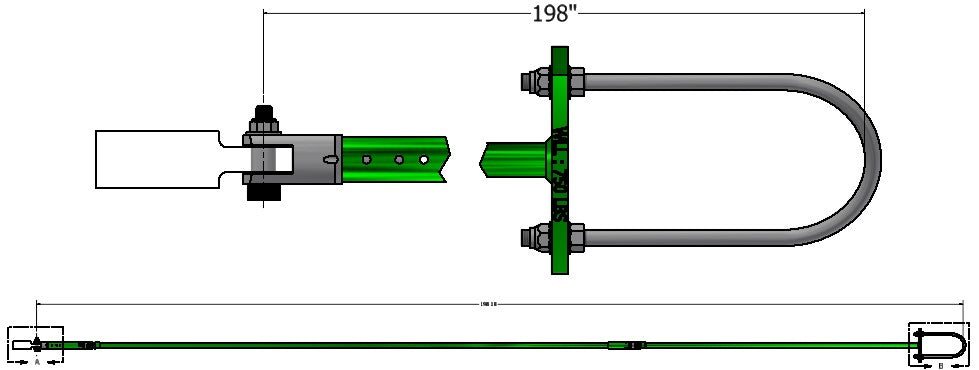

Total Length: 198" (center-to-center)
Achieved using:

• • Qty-1 10 ft Tape-less pole
  • Qty-1 5 ft Tape-less Bail Section
